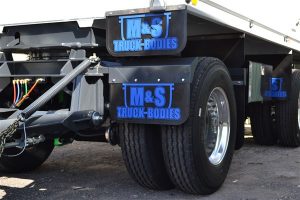

three-axle dog trailers
Specifications:
All our trailers are highly customisable.
A standard configuration is shown in the table below:
- Trailer Size: – To suit application and truck. Generally between 5.9 and 6.1m.
- Body: – Constructed using 5mm high tensile Hardox 450 grade plate.
- Chassis: – Continously formed top flange / body support profile and fully welded high tensile bottom flange. Solid bright pivot bar in hardened steel bushes.
- Floor: – Standard 5mm thick Hardox 450 grade plate plate welded directly to the main beams.
- Sides: – 5mm thick Hardox 450 grade plate welded to top coaming.
- Front Wall: – 5mm Hardox 450 grade plate.
- Top Rail: – Heavy duty tapered top extrusion.
- Tailgate: – 5mm thick Hardox 450 grade plate with heavy duty two-way swing.
- Turn Table: – Double row ballrace. Dolly is fitted with an air operated ram for the dolly lock.
- Drawbar: – Diamond shape design with replaceable rubber bushes, 50mm weld-on tow eye, adjustable drawbar spring supports, throw over landing support leg and provision for spare wheel carrier.
- Lighting: – LED lights to ADR45.
- Hoist: – To suit truck make & application.
- Axles & Suspension: – Air bag suspension. Drum or Disc as per customer specifications.
- Brake Kit: EBS braking system.
- Tyres & Wheels: – Twelve 11r22.5 trailer tyres on Aluminium forged wheels. (Six polished & six machined).
- Paint: – All steelwork is grit blasted, primed and finished with 2-pack polyurethane paint.
- Tarp: – Powertarps PVC All-weather tarping system with electric motor.
- Accessories: – Mudflaps, shovel hook holder, reflectors, Stainless Steel lid toolbox & Water tank.
- Options: – Grain Doors / Sludge Locks / Spill Tray and more.
Call or email our team with your requirements and we will customise our quote to suit:
